2020, Prova 1

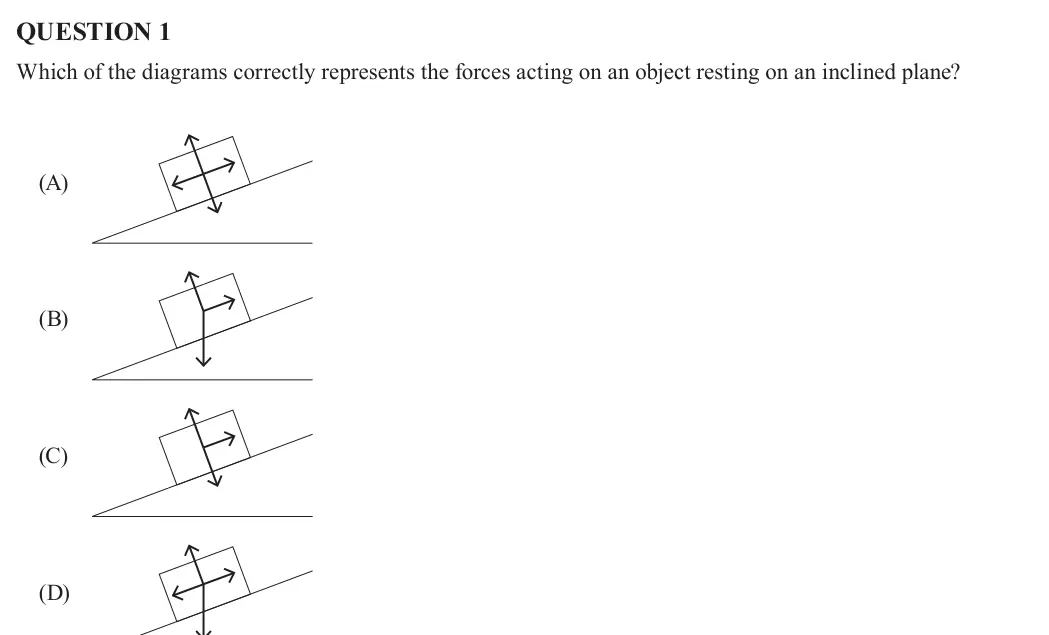

QUESTION 1 Which of the diagrams correctly represents the forces acting on an object resting on an inclined plane? (A) (B) (C) (D)

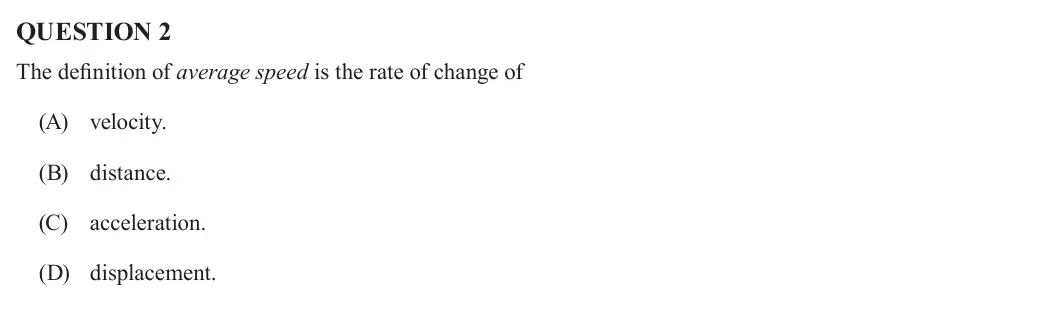

QUESTION 2 The definition of average speed is the rate of change of (A) velocity. (B) distance. (C) acceleration. (D) displacement.

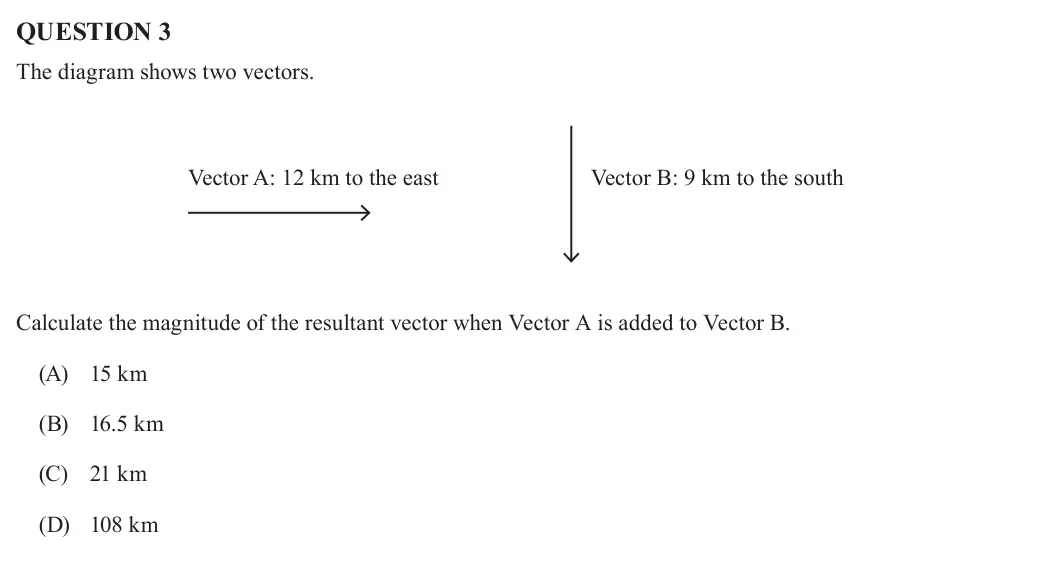

QUESTION 3 The diagram shows two vectors. Vector A: 12 km to the east Vector B: 9 km to the south Calculate the magnitude of the resultant vector when Vector A is added to Vector B. (A) 15 km (B) 16.5 km (C) 21 km (D) 108 km

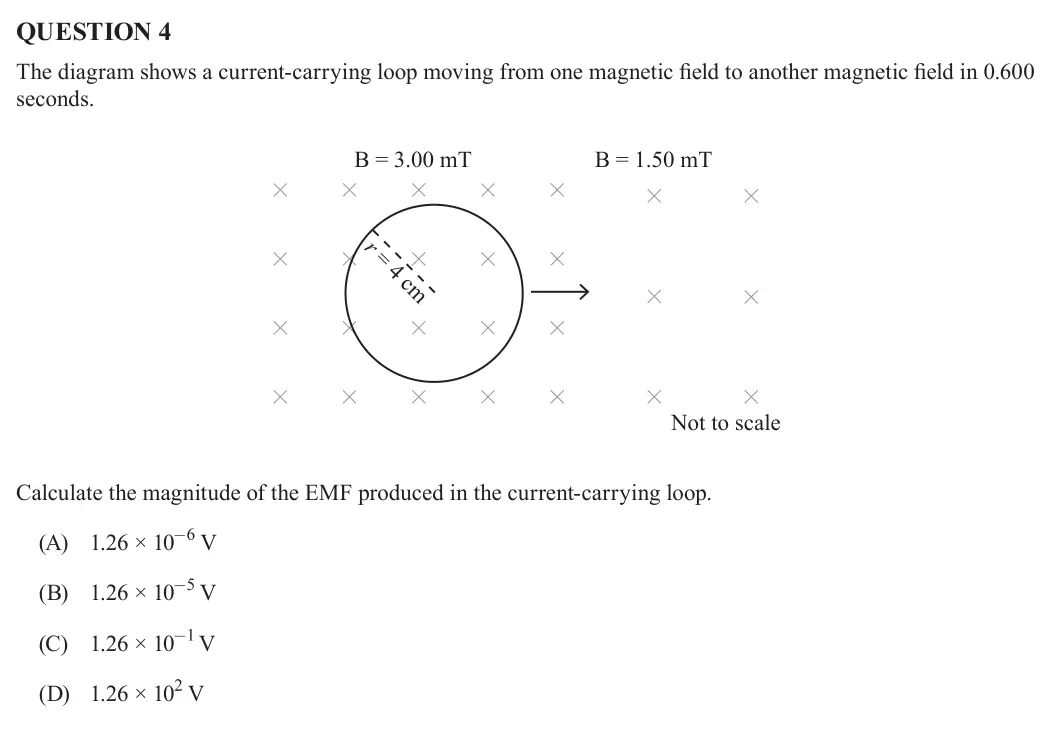

QUESTION 4 The diagram shows a current-carrying loop moving from one magnetic field to another magnetic field in 0.600 seconds. B = 3.00 mT r = 4 cm B = 1.50 mT Not to scale Calculate the magnitude of the EMF produced in the current-carrying loop. (A) 1.26 × 10 V (B) 1.26 × 10 V (C) 1.26 × 10 V (D) 1.26 × 10 V

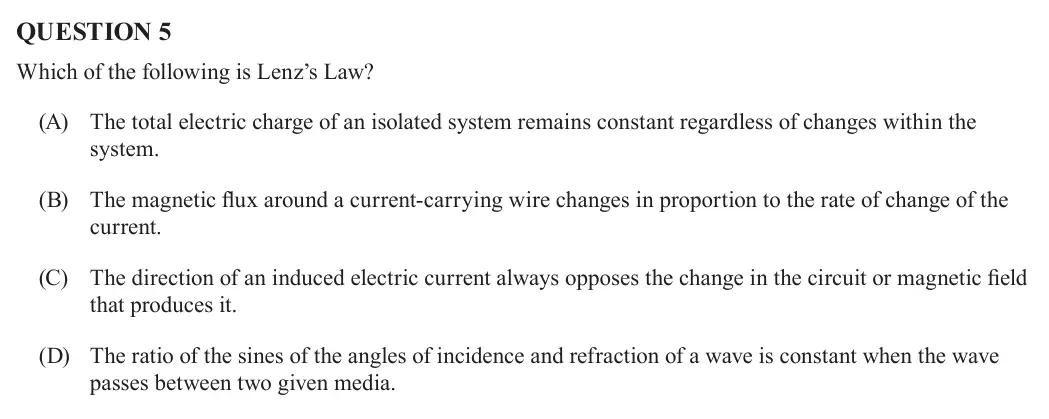

QUESTION 5 Which of the following is Lenz’s Law? (A) The total electric charge of an isolated system remains constant regardless of changes within the system. (B) The magnetic flux around a current-carrying wire changes in proportion to the rate of change of the current. (C) The direction of an induced electric current always opposes the change in the circuit or magnetic field that produces it. (D) The ratio of the sines of the angles of incidence and refraction of a wave is constant when the wave passes between two given media.

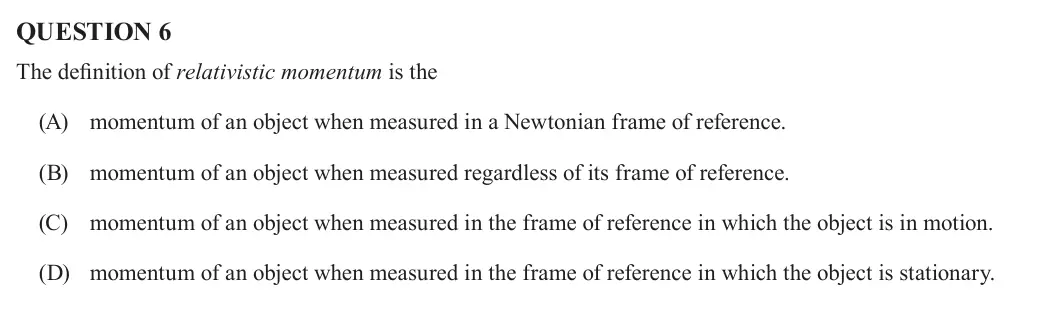

QUESTION 6 The definition of relativistic momentum is the (A) momentum of an object when measured in a Newtonian frame of reference. (B) momentum of an object when measured regardless of its frame of reference. (C) momentum of an object when measured in the frame of reference in which the object is in motion. (D) momentum of an object when measured in the frame of reference in which the object is stationary.

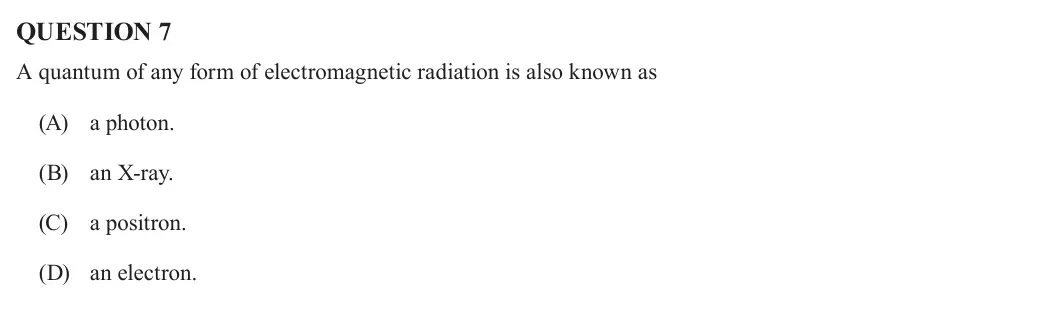

QUESTION 7 A quantum of any form of electromagnetic radiation is also known as (A) a photon. (B) an X-ray. (C) a positron. (D) an electron.

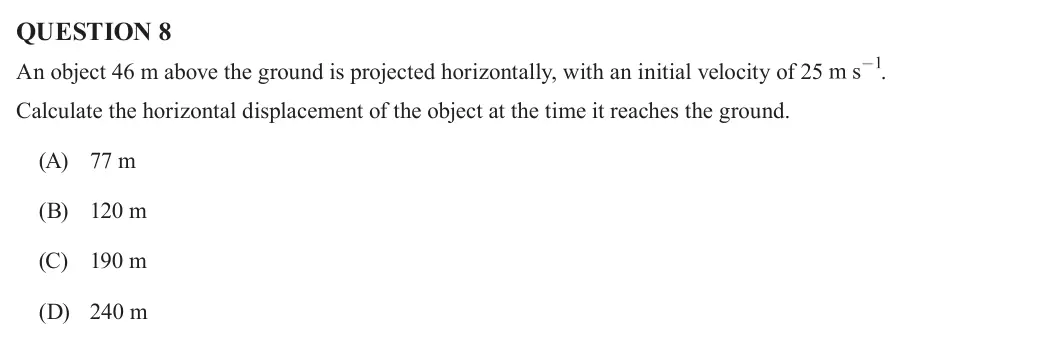

QUESTION 8 An object 46 m above the ground is projected horizontally, with an initial velocity of 25 . Calculate the horizontal displacement of the object at the time it reaches the ground. (A) 77 m (B) 120 m (C) 190 m (D) 240 m

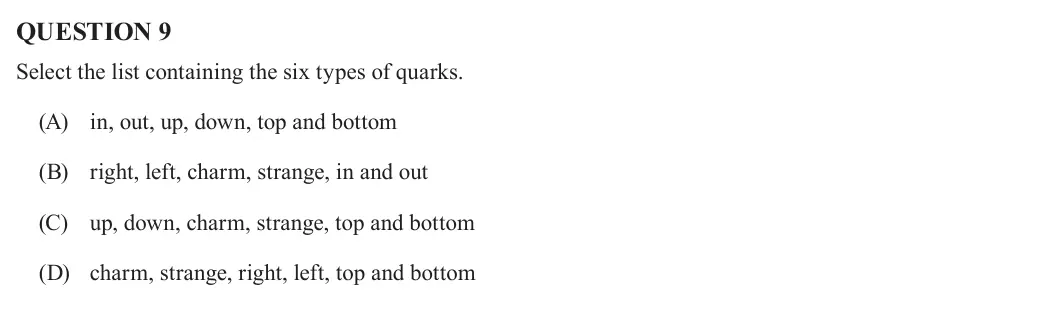

QUESTION 9 Select the list containing the six types of quarks. (A) in, out, up, down, top and bottom (B) right, left, charm, strange, in and out (C) up, down, charm, strange, top and bottom (D) charm, strange, right, left, top and bottom

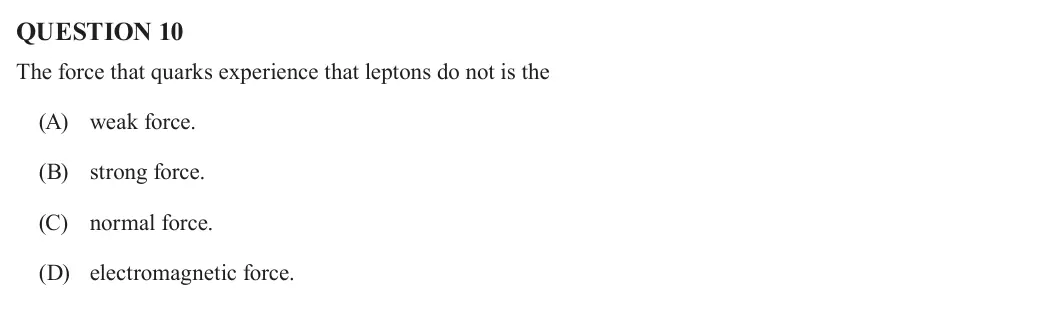

QUESTION 10 The force that quarks experience that leptons do not is the (A) weak force. (B) strong force. (C) normal force. (D) electromagnetic force.

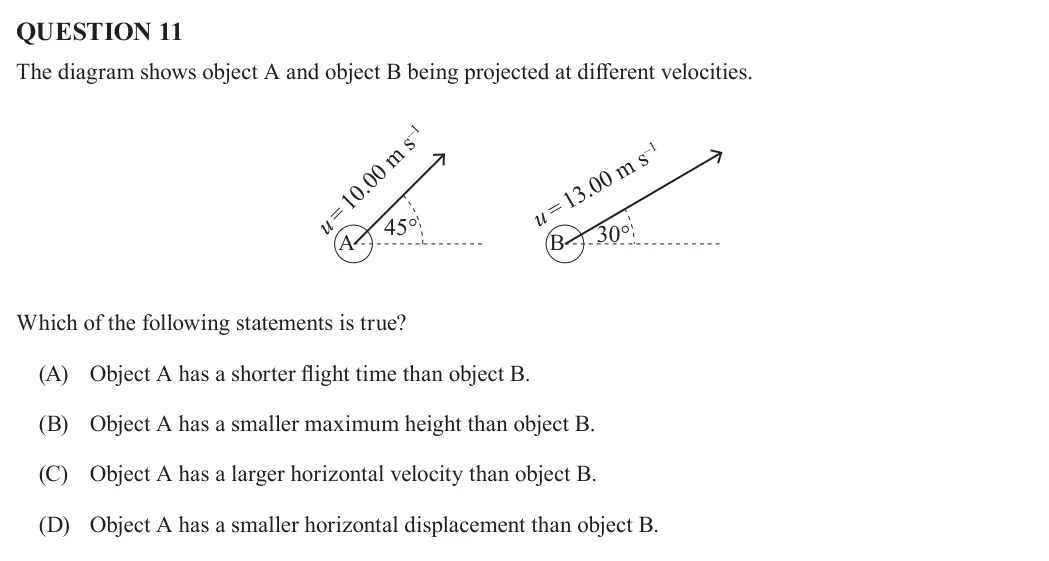

QUESTION 11 The diagram shows object A and object B being projected at different velocities. u = 13.00 m s–1 u = 10.00 m s–1 45° 30° A B Which of the following statements is true? (A) Object A has a shorter flight time than object B. (B) Object A has a smaller maximum height than object B. (C) Object A has a larger horizontal velocity than object B. (D) Object A has a smaller horizontal displacement than object B.

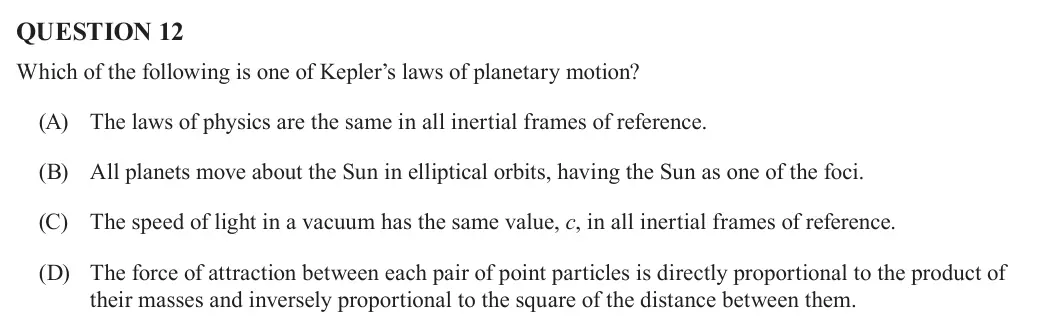

QUESTION 12 Which of the following is one of Kepler’s laws of planetary motion? (A) The laws of physics are the same in all inertial frames of reference. (B) All planets move about the Sun in elliptical orbits, having the Sun as one of the foci. (C) The speed of light in a vacuum has the same value, c, in all inertial frames of reference. (D) The force of attraction between each pair of point particles is directly proportional to the product of their masses and inversely proportional to the square of the distance between them.

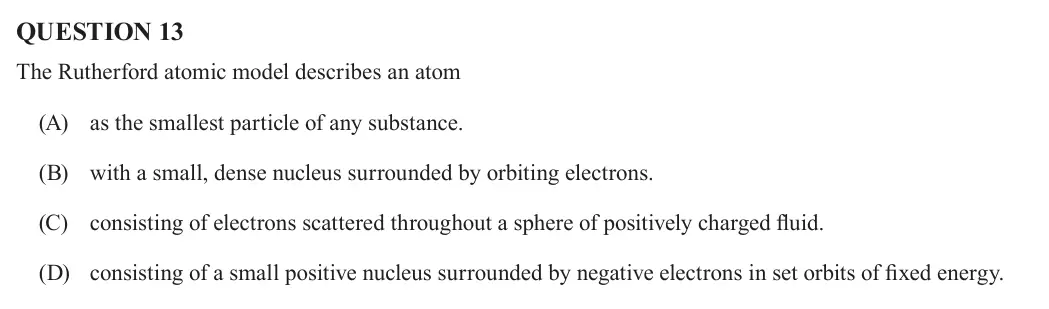

QUESTION 13 The Rutherford atomic model describes an atom (A) as the smallest particle of any substance. (B) with a small, dense nucleus surrounded by orbiting electrons. (C) consisting of electrons scattered throughout a sphere of positively charged fluid. (D) consisting of a small positive nucleus surrounded by negative electrons in set orbits of fixed energy.

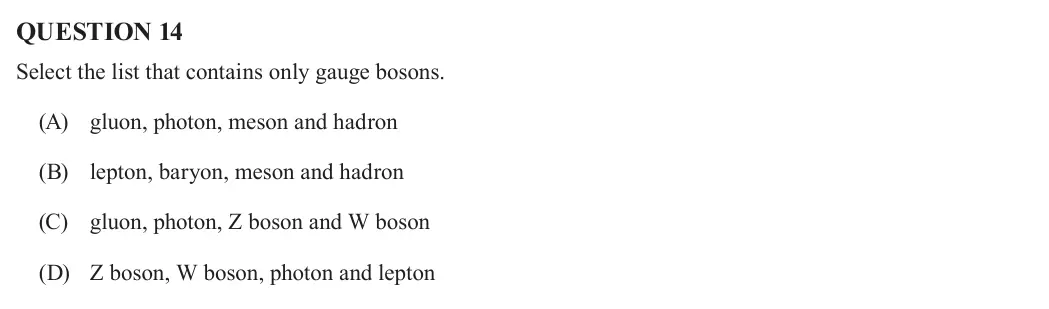

QUESTION 14 Select the list that contains only gauge bosons. (A) gluon, photon, meson and hadron (B) lepton, baryon, meson and hadron (C) gluon, photon, Z boson and W boson (D) Z boson, W boson, photon and lepton

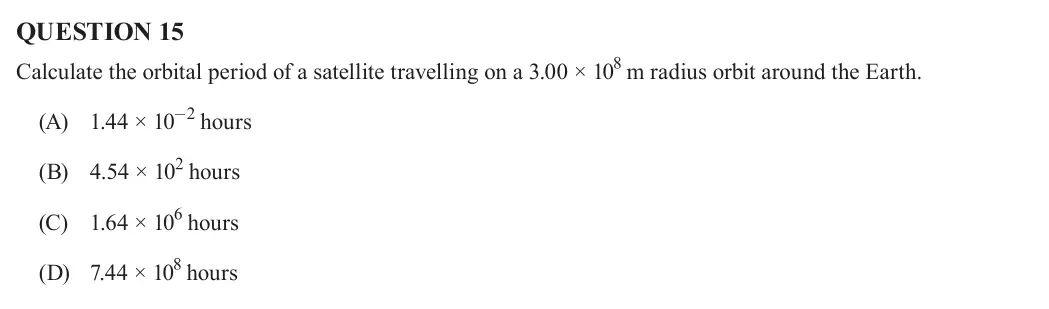

QUESTION 15 Calculate the orbital period of a satellite travelling on a 3.00 × 10 m radius orbit around the Earth. (A) 1.44 × 10 hours (B) 4.54 × 10 hours (C) 1.64 × 10 hours (D) 7.44 × 10 hours

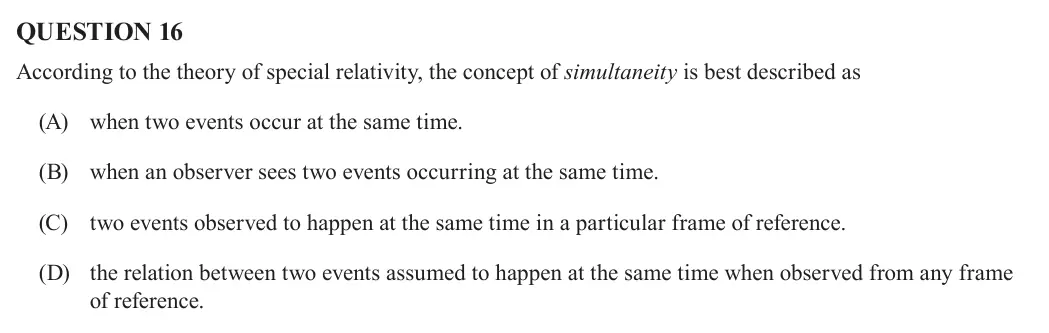

QUESTION 16 According to the theory of special relativity, the concept of simultaneity is best described as (A) when two events occur at the same time. (B) when an observer sees two events occurring at the same time. (C) two events observed to happen at the same time in a particular frame of reference. (D) the relation between two events assumed to happen at the same time when observed from any frame of reference.

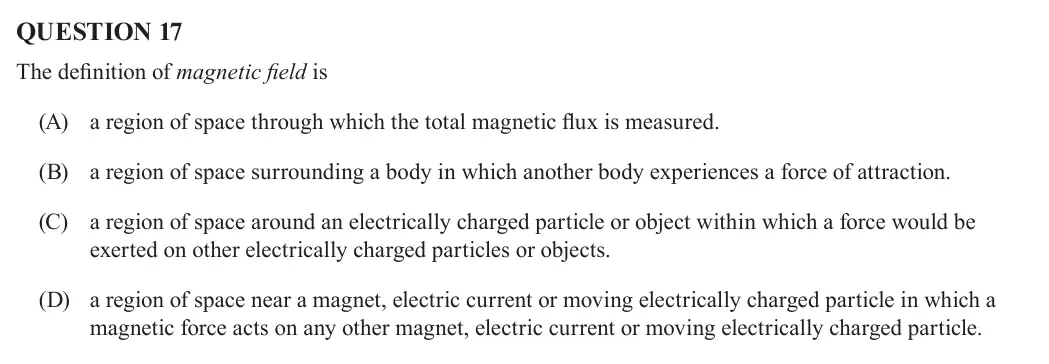

QUESTION 17 The definition of magnetic field is (A) a region of space through which the total magnetic flux is measured. (B) a region of space surrounding a body in which another body experiences a force of attraction. (C) a region of space around an electrically charged particle or object within which a force would be exerted on other electrically charged particles or objects. (D) a region of space near a magnet, electric current or moving electrically charged particle in which a magnetic force acts on any other magnet, electric current or moving electrically charged particle.

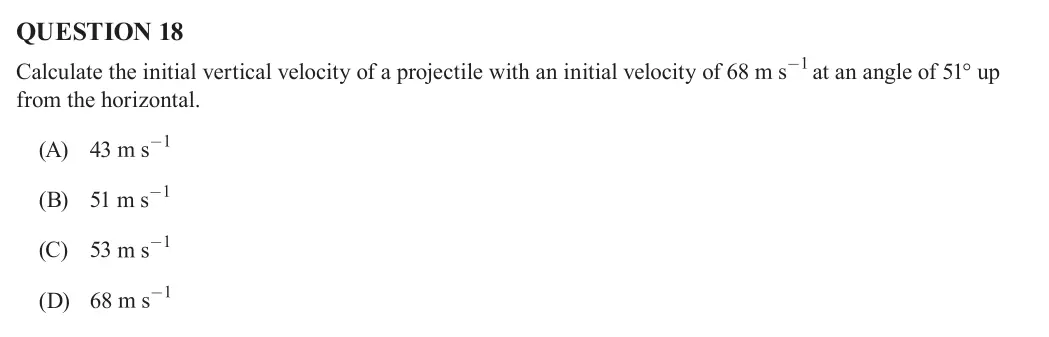

QUESTION 18 Calculate the initial vertical velocity of a projectile with an initial velocity of 68 at an angle of 51° up from the horizontal. (A) 43 (B) 51 (C) 53 (D) 68

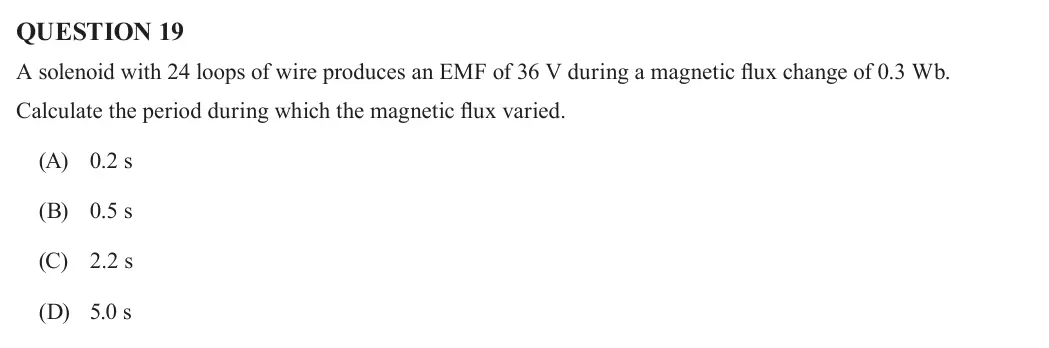

QUESTION 19 A solenoid with 24 loops of wire produces an EMF of 36 V during a magnetic flux change of 0.3 Wb. Calculate the period during which the magnetic flux varied. (A) 0.2 s (B) 0.5 s (C) 2.2 s (D) 5.0 s

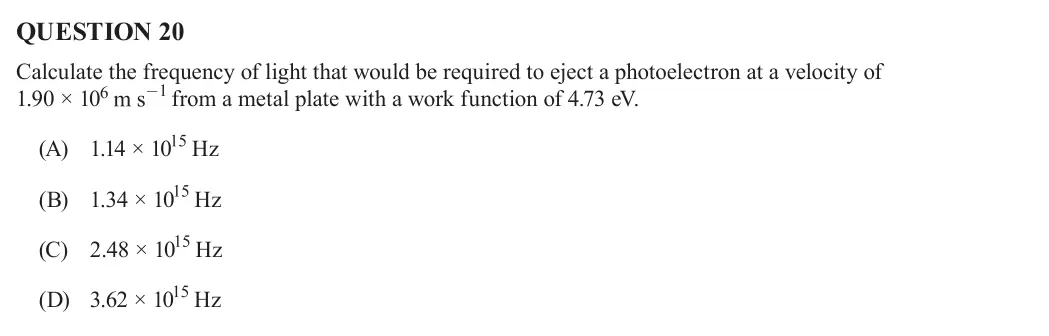

QUESTION 20 Calculate the frequency of light that would be required to eject a photoelectron at a velocity of 1.90 × 10 from a metal plate with a work function of 4.73 eV. (A) 1.14 × 10 Hz (B) 1.34 × 10 Hz (C) 2.48 × 10 Hz (D) 3.62 × 10 Hz

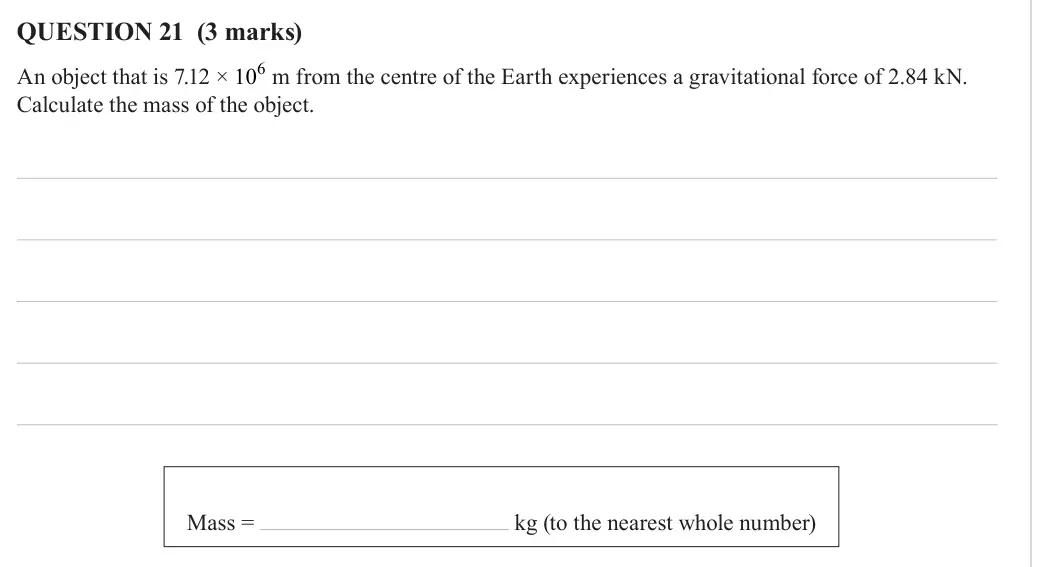

QUESTION 21 (3 marks) An object that is 7.12 × 6 10 m from the centre of the Earth experiences a gravitational force of 2.84 kN. Calculate the mass of the object. Mass = kg (to the nearest whole number)

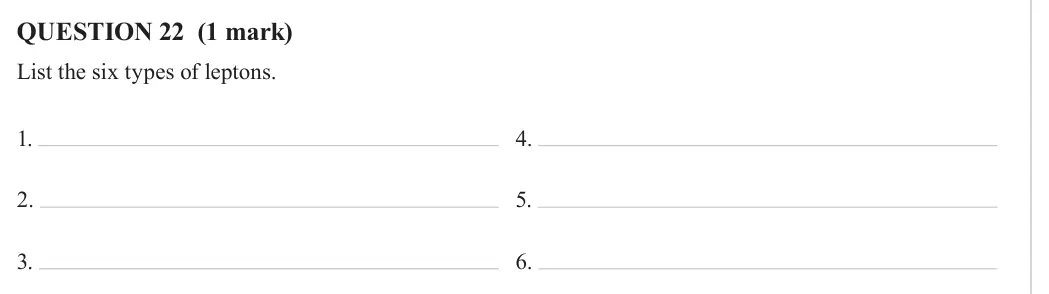

QUESTION 22 (1 mark) List the six types of leptons. 1.  2.  3.  4.  5.  6.

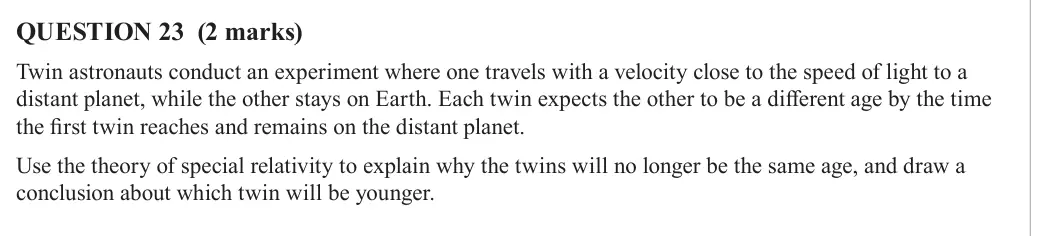

QUESTION 23 (2 marks) Twin astronauts conduct an experiment where one travels with a velocity close to the speed of light to a distant planet, while the other stays on Earth. Each twin expects the other to be a different age by the time the first twin reaches and remains on the distant planet. Use the theory of special relativity to explain why the twins will no longer be the same age, and draw a conclusion about which twin will be younger.

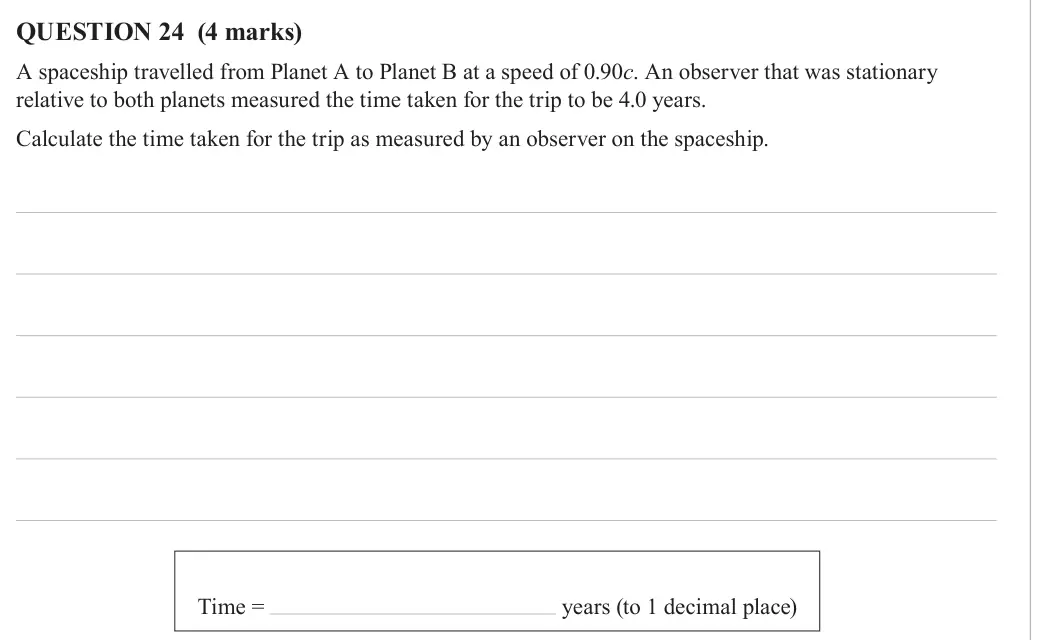

QUESTION 24 (4 marks) A spaceship travelled from Planet A to Planet B at a speed of 0.90c. An observer that was stationary relative to both planets measured the time taken for the trip to be 4.0 years. Calculate the time taken for the trip as measured by an observer on the spaceship. Time = years (to 1 decimal place)

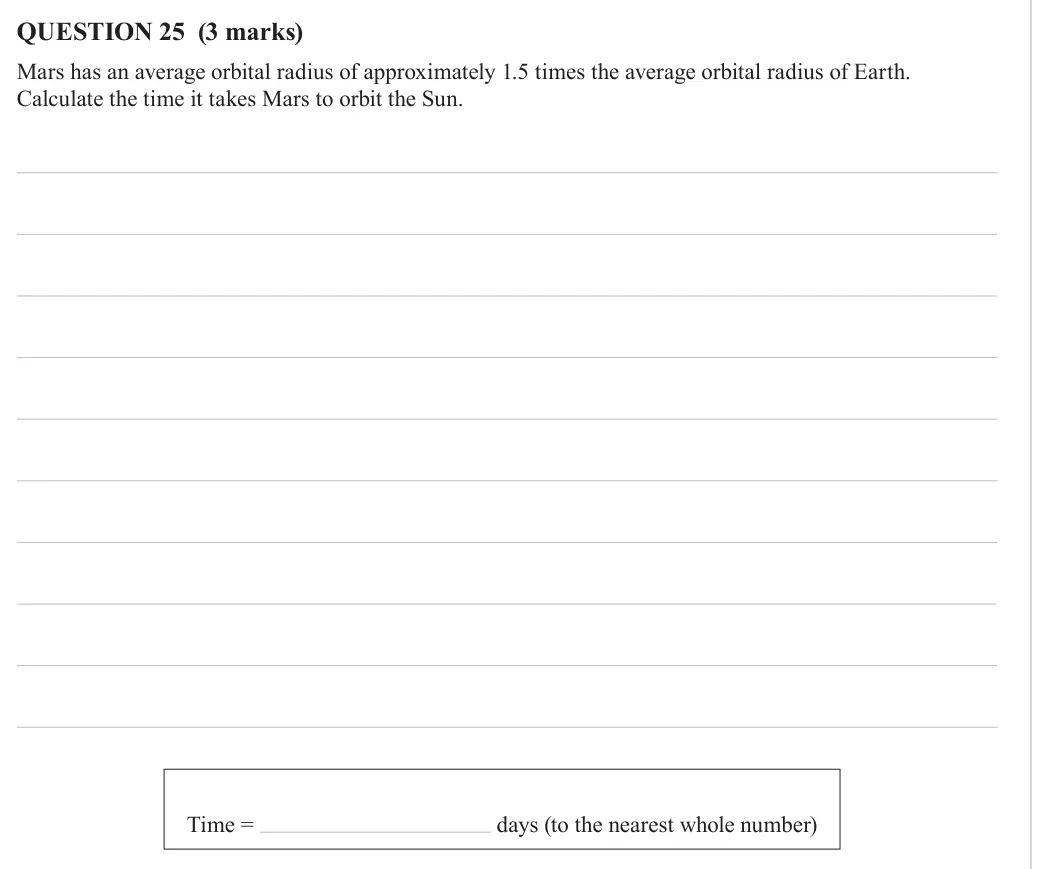

QUESTION 25 (3 marks) Mars has an average orbital radius of approximately 1.5 times the average orbital radius of Earth. Calculate the time it takes Mars to orbit the Sun. Time = days (to the nearest whole number)

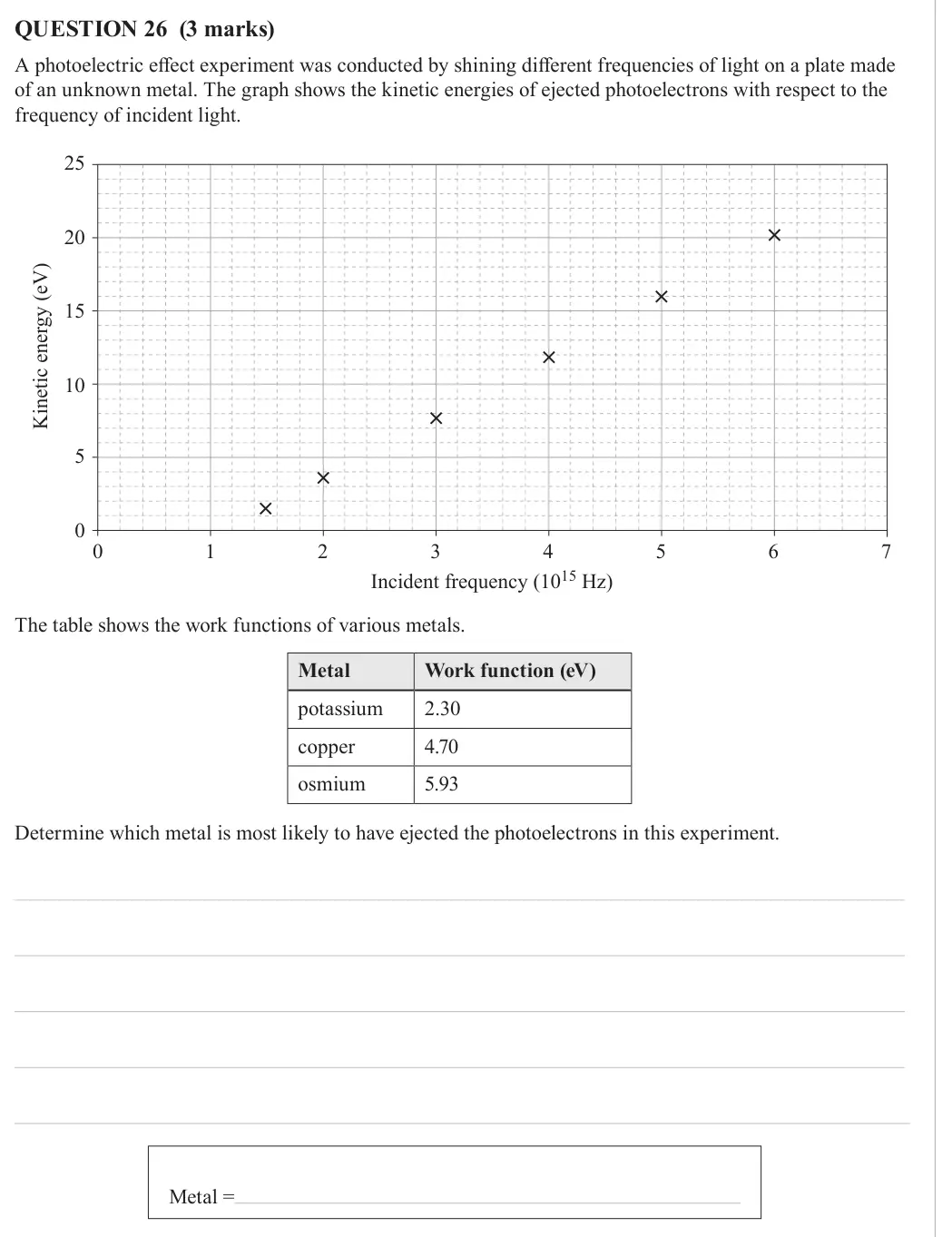

QUESTION 26 (3 marks) A photoelectric effect experiment was conducted by shining different frequencies of light on a plate made of an unknown metal. The graph shows the kinetic energies of ejected photoelectrons with respect to the frequency of incident light. Kinetic energy (eV) Incident frequency (1015 Hz) 25 15 5 20 10 0 0 2 4 6 1 3 5 7 The table shows the work functions of various metals. Metal Work function (eV) potassium 2.30 copper 4.70 osmium 5.93 Determine which metal is most likely to have ejected the photoelectrons in this experiment. Metal =

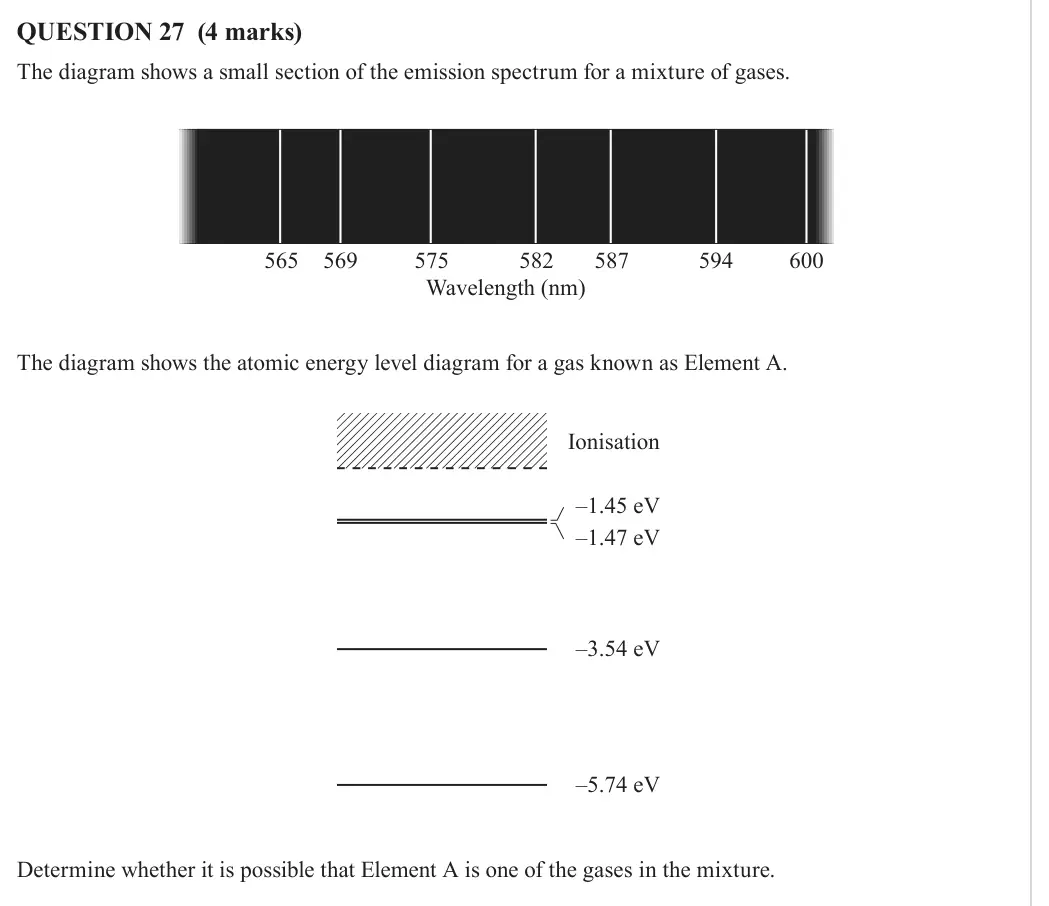

QUESTION 27 (4 marks) The diagram shows a small section of the emission spectrum for a mixture of gases. 575 Wavelength (nm) 594 600 587 582 569 565 The diagram shows the atomic energy level diagram for a gas known as Element A. Ionisation –1.45 eV –3.54 eV –5.74 eV –1.47 eV Determine whether it is possible that Element A is one of the gases in the mixture.

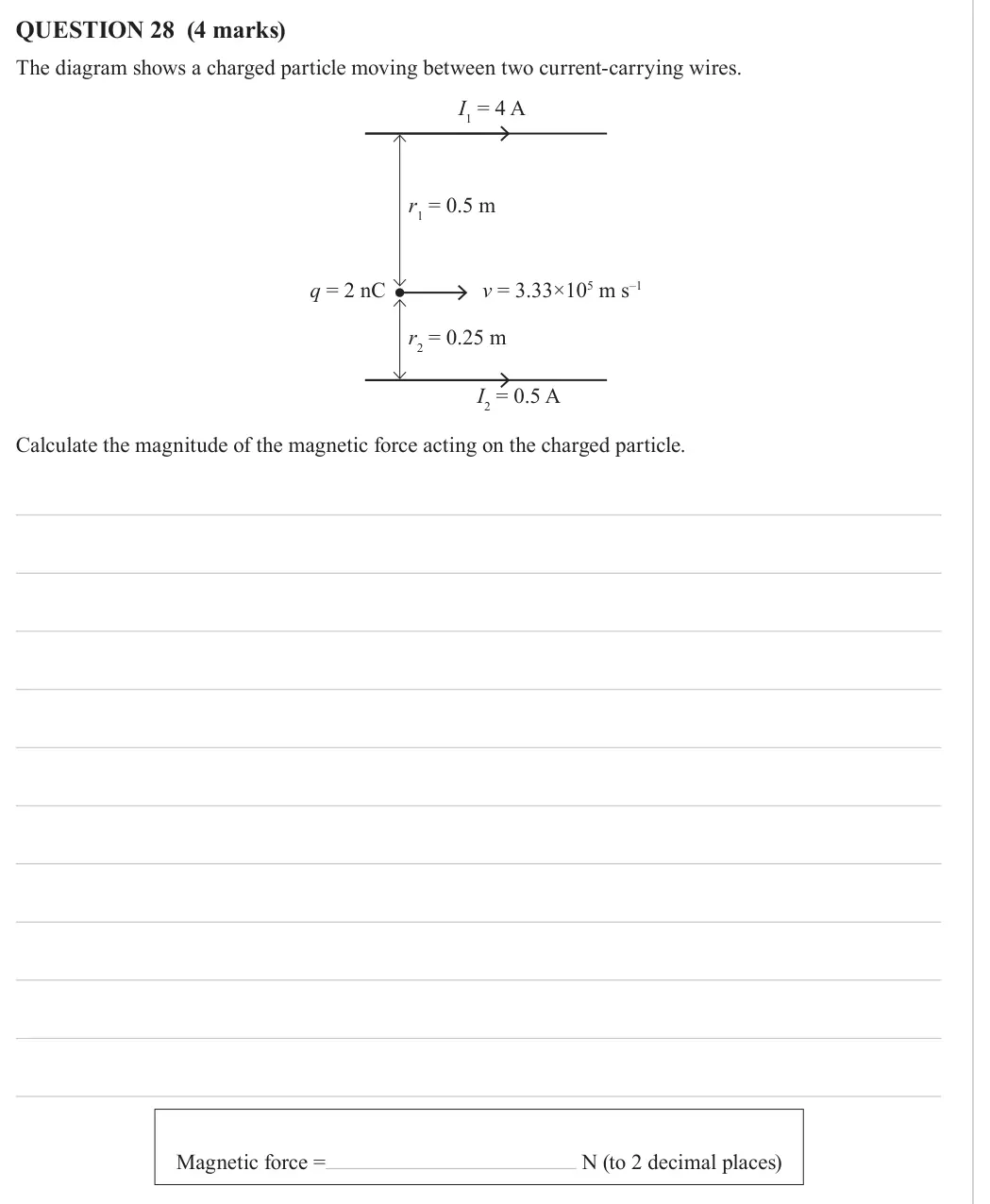

QUESTION 28 (4 marks) The diagram shows a charged particle moving between two current-carrying wires. I1 = 4 A r1 = 0.5 m r2 = 0.25 m v = 3.33×105 m s–1 q = 2 nC I2 = 0.5 A Calculate the magnitude of the magnetic force acting on the charged particle. Magnetic force = N (to 2 decimal places)
