2025, Paper 1

QUESTION 1 Normal force is the force that always (A) opposes the total weight of an object vertical to a surface. (B) acts along an imaginary line perpendicular to a surface. (C) works on an object in a direction parallel to a surface. (D) resists the motion of an object along a surface.

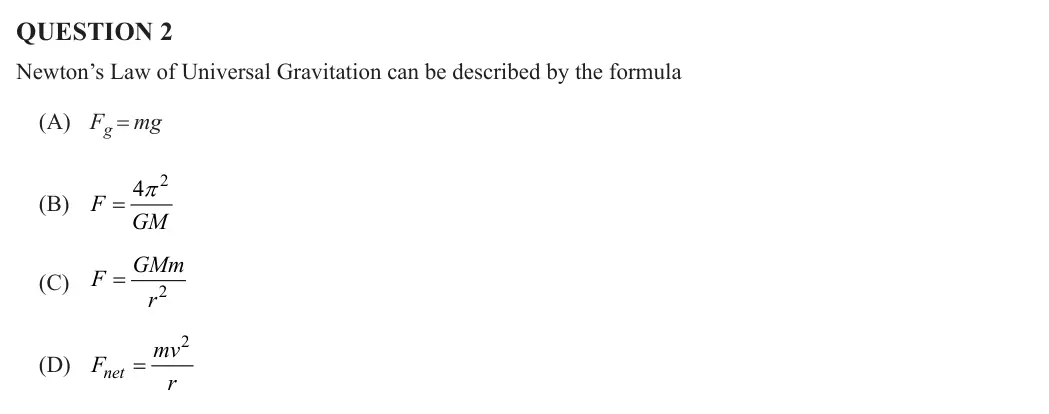

QUESTION 2 Newton’s Law of Universal Gravitation can be described by the formula (A) Fg = mg (B) 2 4 F GM π = (C) 2 GMm F r = (D) 2 net mv F r =

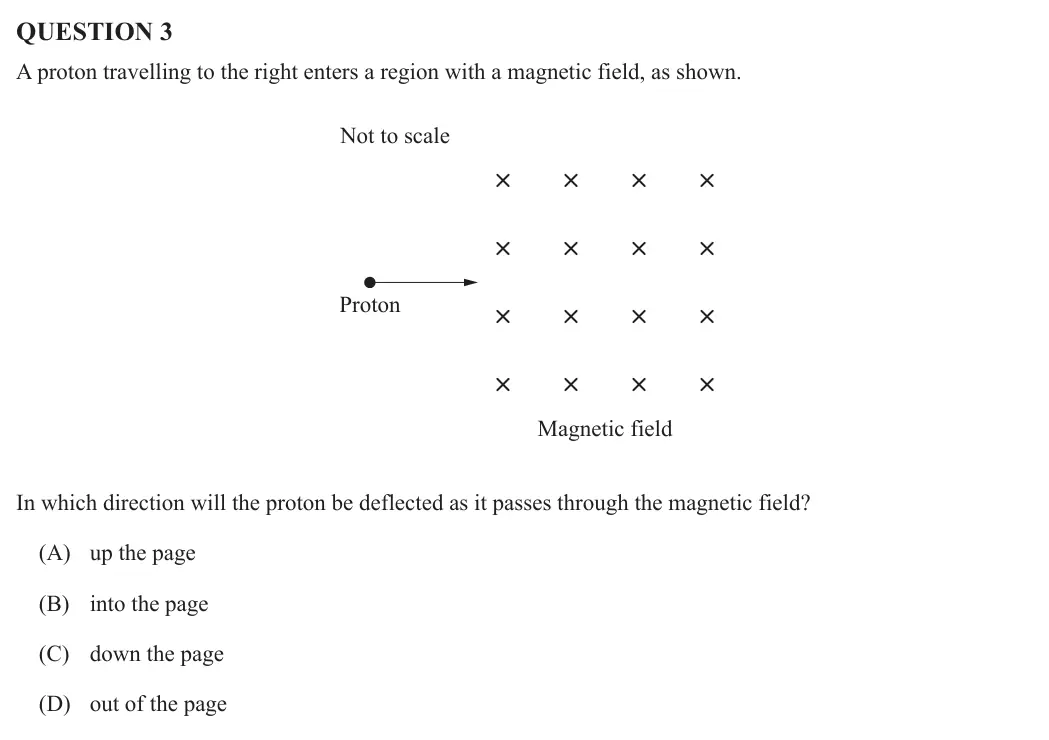

QUESTION 3 A proton travelling to the right enters a region with a magnetic field, as shown. Proton Magnetic field Not to scale In which direction will the proton be deflected as it passes through the magnetic field? (A) up the page (B) into the page (C) down the page (D) out of the page

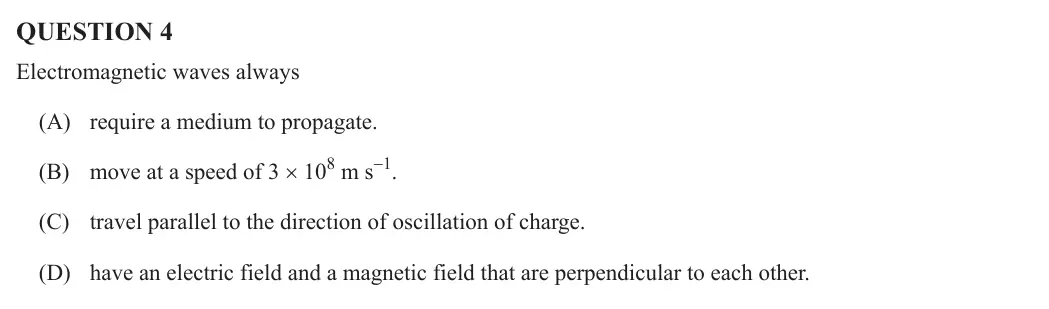

QUESTION 4 Electromagnetic waves always (A) require a medium to propagate. (B) move at a speed of 3 × 108 m s−1. (C) travel parallel to the direction of oscillation of charge. (D) have an electric field and a magnetic field that are perpendicular to each other.

QUESTION 5 A satellite orbits around a planet. If the radius of the satellite’s orbit were to increase by a factor of 4, its period would increase by a factor of (A) 4 (B) 8 (C) 16

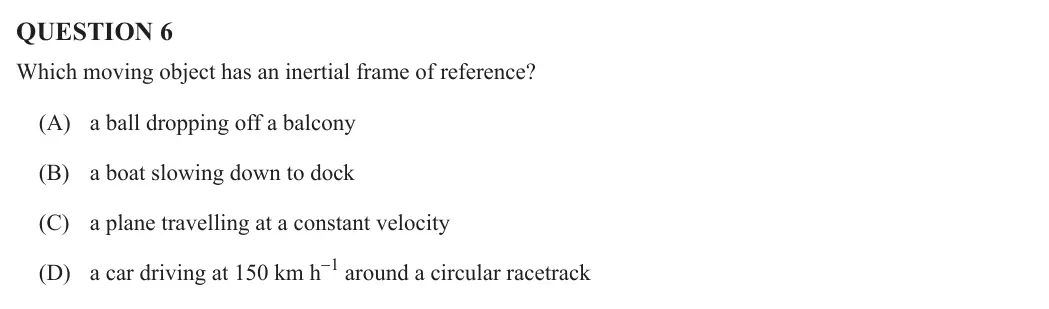

QUESTION 6 Which moving object has an inertial frame of reference? (A) a ball dropping off a balcony (B) a boat slowing down to dock (C) a plane travelling at a constant velocity (D) a car driving at 150 km h−1 around a circular racetrack

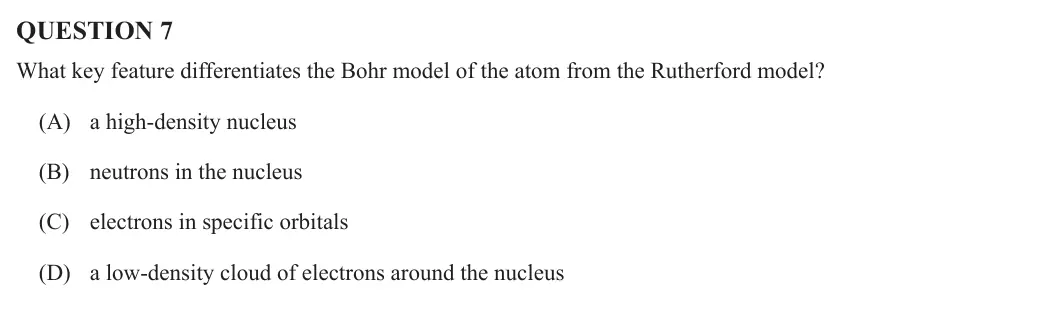

QUESTION 7 What key feature differentiates the Bohr model of the atom from the Rutherford model? (A) a high-density nucleus (B) neutrons in the nucleus (C) electrons in specific orbitals (D) a low-density cloud of electrons around the nucleus

QUESTION 8 A uniform electric field was produced in a vacuum using a set of parallel plates. A stationary electron was placed between the plates and then released, as shown. − + − Not to scale If all gravitational effects are ignored, the stationary electron between the plates will (A) move at a constant velocity toward the positive plate. (B) travel in the same direction as the magnetic field lines. (C) accelerate in the opposite direction to the electric field lines. (D) i i i i ll d d ll d b h l

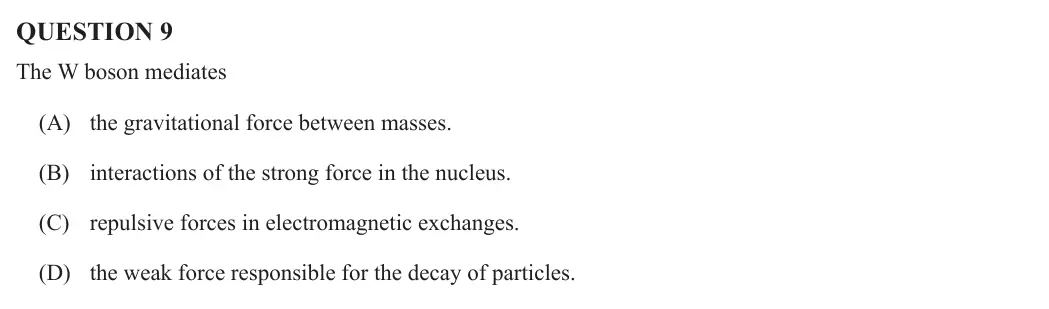

QUESTION 9 The W boson mediates (A) the gravitational force between masses. (B) interactions of the strong force in the nucleus. (C) repulsive forces in electromagnetic exchanges. (D) the weak force responsible for the decay of particles.

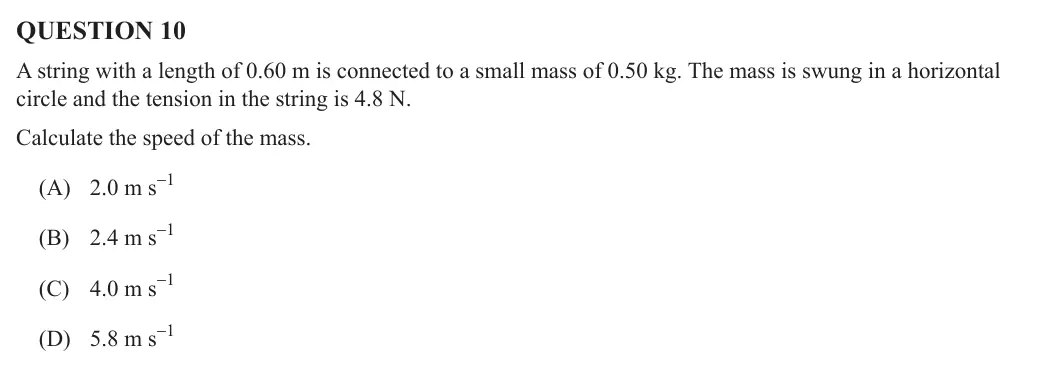

QUESTION 10 A string with a length of 0.60 m is connected to a small mass of 0.50 kg. The mass is swung in a horizontal circle and the tension in the string is 4.8 N. Calculate the speed of the mass. (A) 2.0 m s−1 (B) 2.4 m s−1 (C) 4.0 m s−1 (D) 5.8 m s−1

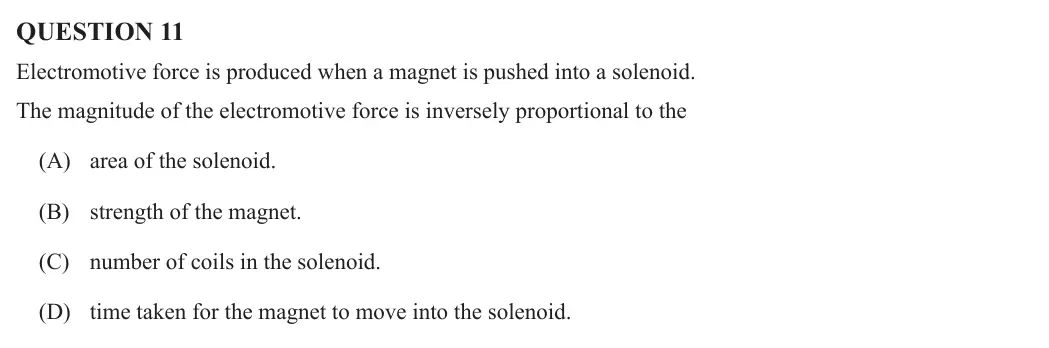

QUESTION 11 Electromotive force is produced when a magnet is pushed into a solenoid. The magnitude of the electromotive force is inversely proportional to the (A) area of the solenoid. (B) strength of the magnet. (C) number of coils in the solenoid. (D) time taken for the magnet to move into the solenoid.

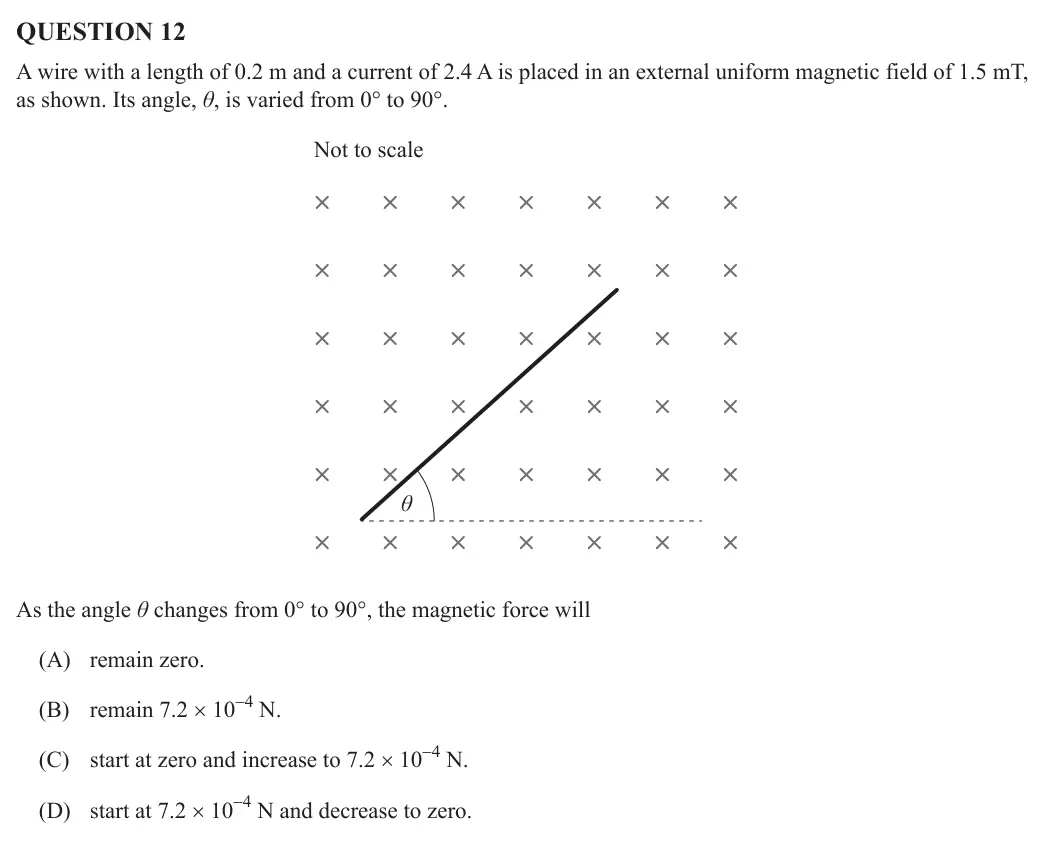

QUESTION 12 A wire with a length of 0.2 m and a current of 2.4 A is placed in an external uniform magnetic field of 1.5 mT, as shown. Its angle, θ, is varied from 0° to 90°. Not to scale θ As the angle θ changes from 0° to 90°, the magnetic force will (A) remain zero. (B) remain 7.2 × 10−4 N. (C) start at zero and increase to 7.2 × 10−4 N. (D) start at 7.2 × 10−4 N and decrease to zero.

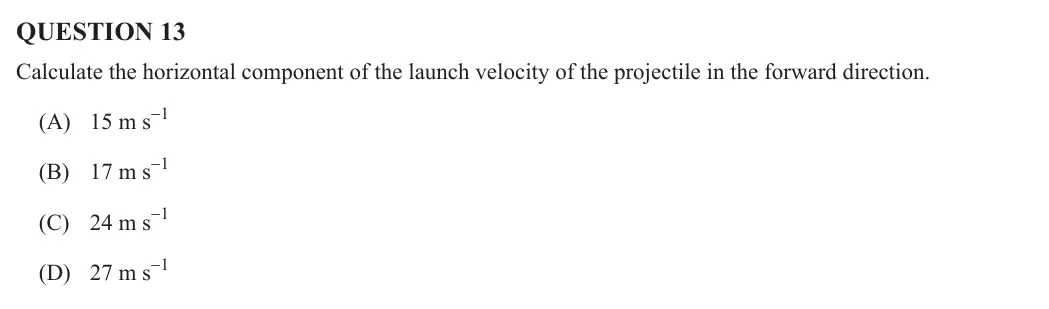

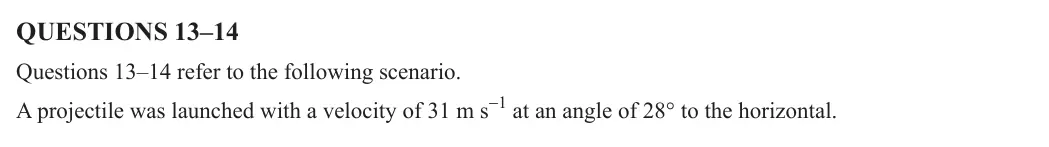

QUESTIONS 13–14 Questions 13–14 refer to the following scenario. A projectile was launched with a velocity of 31 m s−1 at an angle of 28° to the horizontal. QUESTION 13 Calculate the horizontal component of the launch velocity of the projectile in the forward direction. (A) 15 m s−1 (B) 17 m s−1 (C) 24 m s−1 (D) 27 m s−1

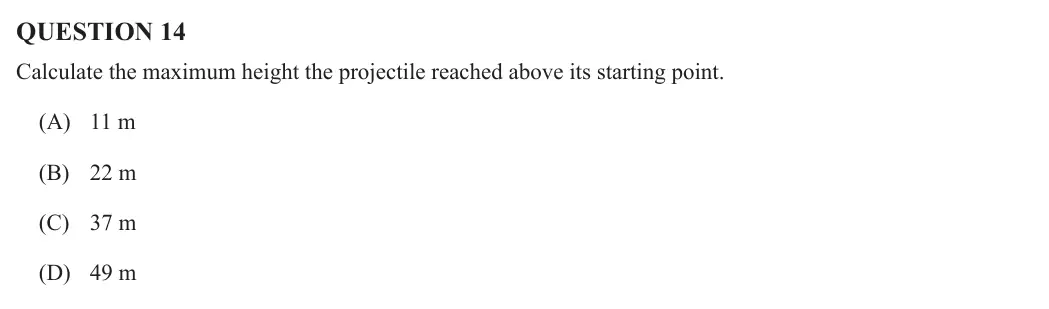

QUESTIONS 13–14 Questions 13–14 refer to the following scenario. A projectile was launched with a velocity of 31 m s−1 at an angle of 28° to the horizontal. QUESTION 14 Calculate the maximum height the projectile reached above its starting point. (A) 11 m (B) 22 m (C) 37 m (D) 49 m

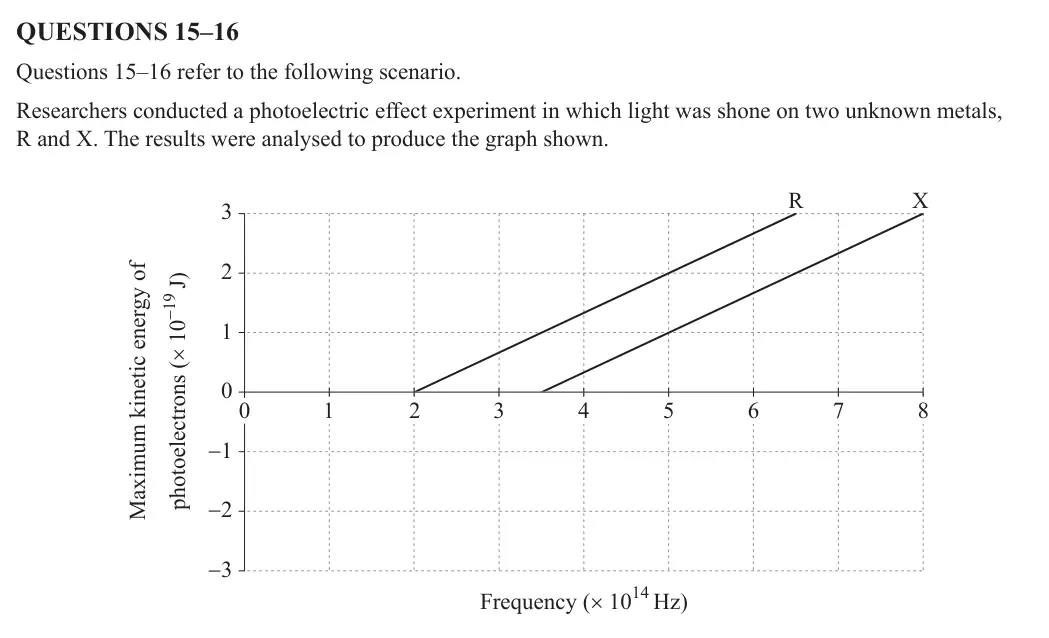

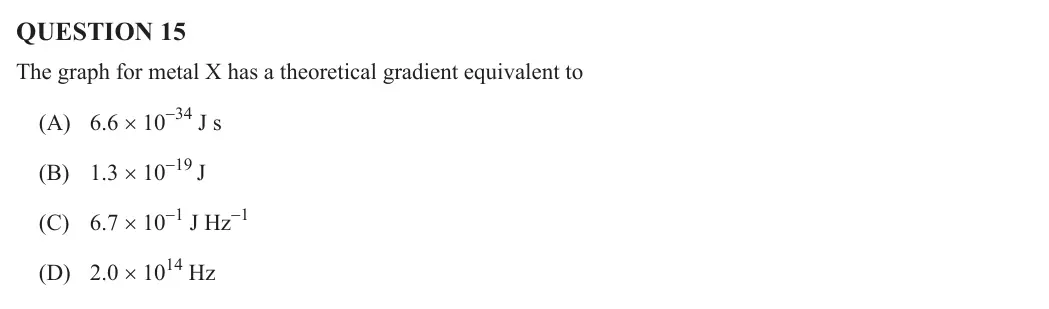

QUESTIONS 15–16 Questions 15–16 refer to the following scenario. Researchers conducted a photoelectric effect experiment in which light was shone on two unknown metals, R and X. The results were analysed to produce the graph shown. −3 −2 −1 0 1 2 3 0 1 R 2 3 4 5 6 7 8 Maximum kinetic energy of photoelectrons (× 10−19 J) Frequency (× 1014 Hz) X QUESTION 15 The graph for metal X has a theoretical gradient equivalent to (A) 6.6 × 10−34 J s (B) 1.3 × 10−19 J (C) 6.7 × 10−1 J Hz−1 (D) 2.0 × 1014 Hz

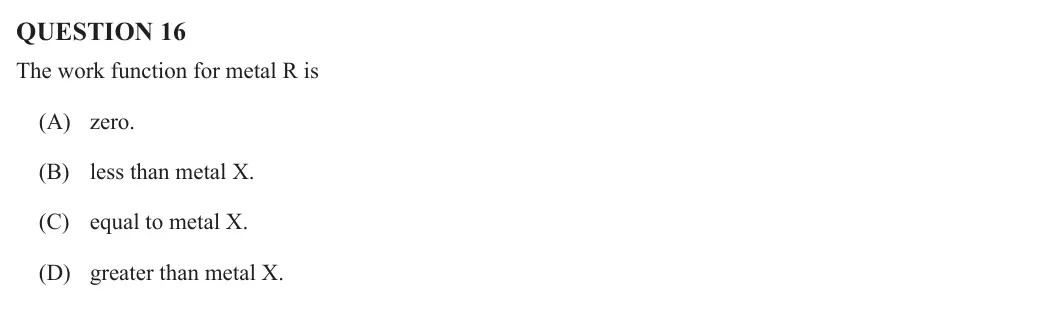

QUESTIONS 15–16 Questions 15–16 refer to the following scenario. Researchers conducted a photoelectric effect experiment in which light was shone on two unknown metals, R and X. The results were analysed to produce the graph shown. −3 −2 −1 0 1 2 3 0 1 R 2 3 4 5 6 7 8 Maximum kinetic energy of photoelectrons (× 10−19 J) Frequency (× 1014 Hz) X QUESTION 16 The work function for metal R is (A) zero. (B) less than metal X. (C) equal to metal X. (D) greater than metal X.

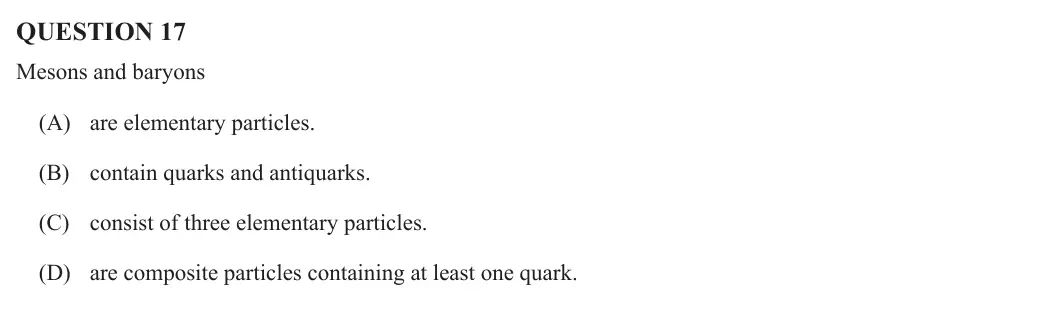

QUESTION 17 Mesons and baryons (A) are elementary particles. (B) contain quarks and antiquarks. (C) consist of three elementary particles. (D) are composite particles containing at least one quark.

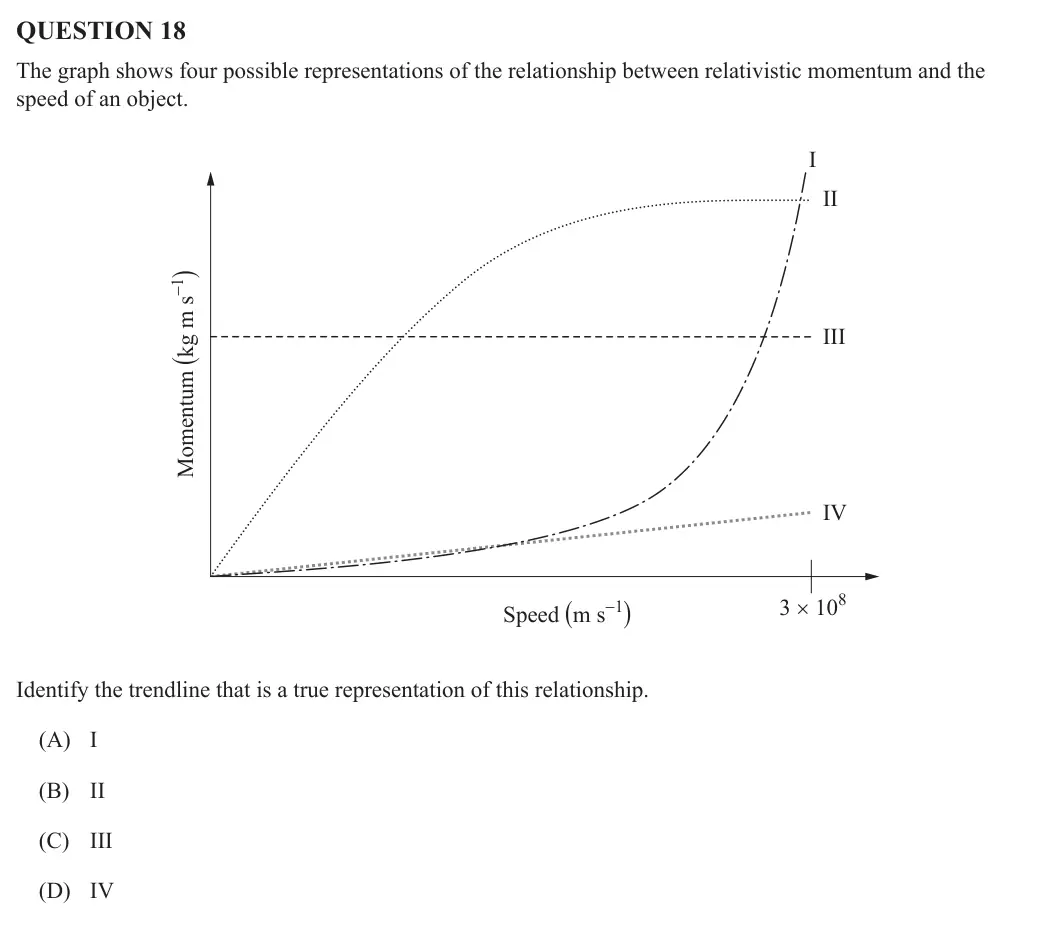

QUESTION 18 The graph shows four possible representations of the relationship between relativistic momentum and the speed of an object. Momentum (kg m s−1) Speed (m s−1) I II III IV 3 × 108 Identify the trendline that is a true representation of this relationship. (A) I (B) II (C) III (D) IV

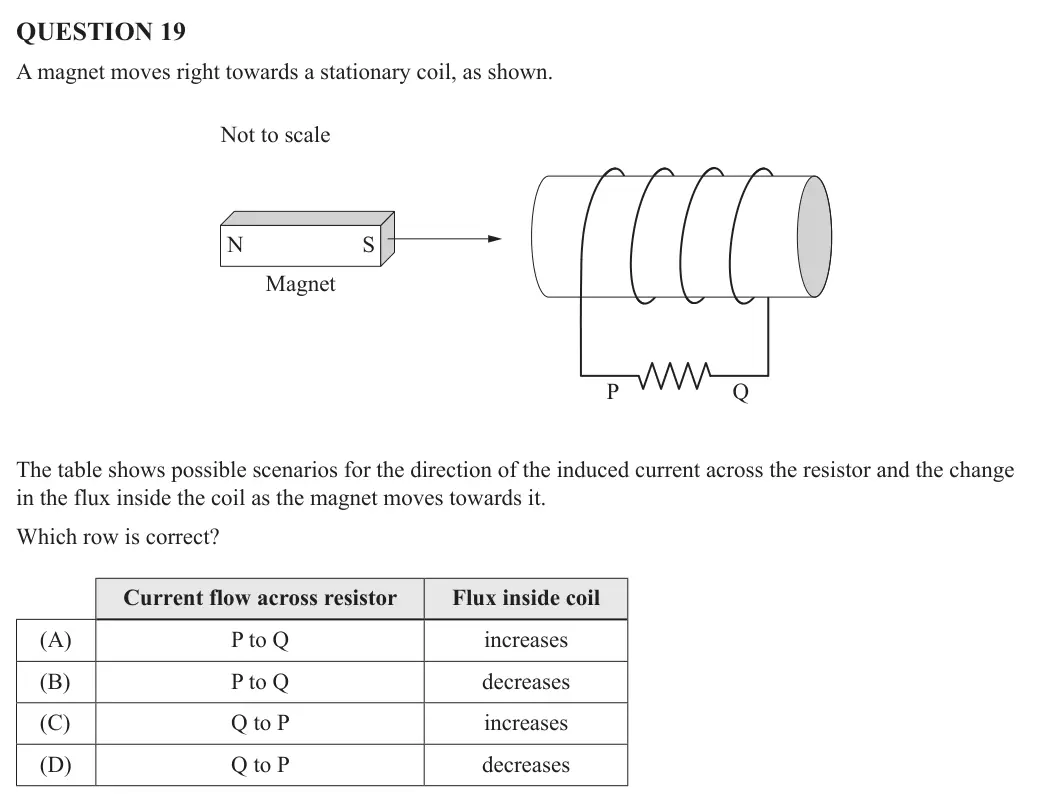

QUESTION 19 A magnet moves right towards a stationary coil, as shown. Not to scale P Q S N Magnet The table shows possible scenarios for the direction of the induced current across the resistor and the change in the flux inside the coil as the magnet moves towards it. Which row is correct? Current flow across resistor Flux inside coil (A) P to Q increases (B) P to Q decreases (C) Q to P increases (D) Q to P decreases

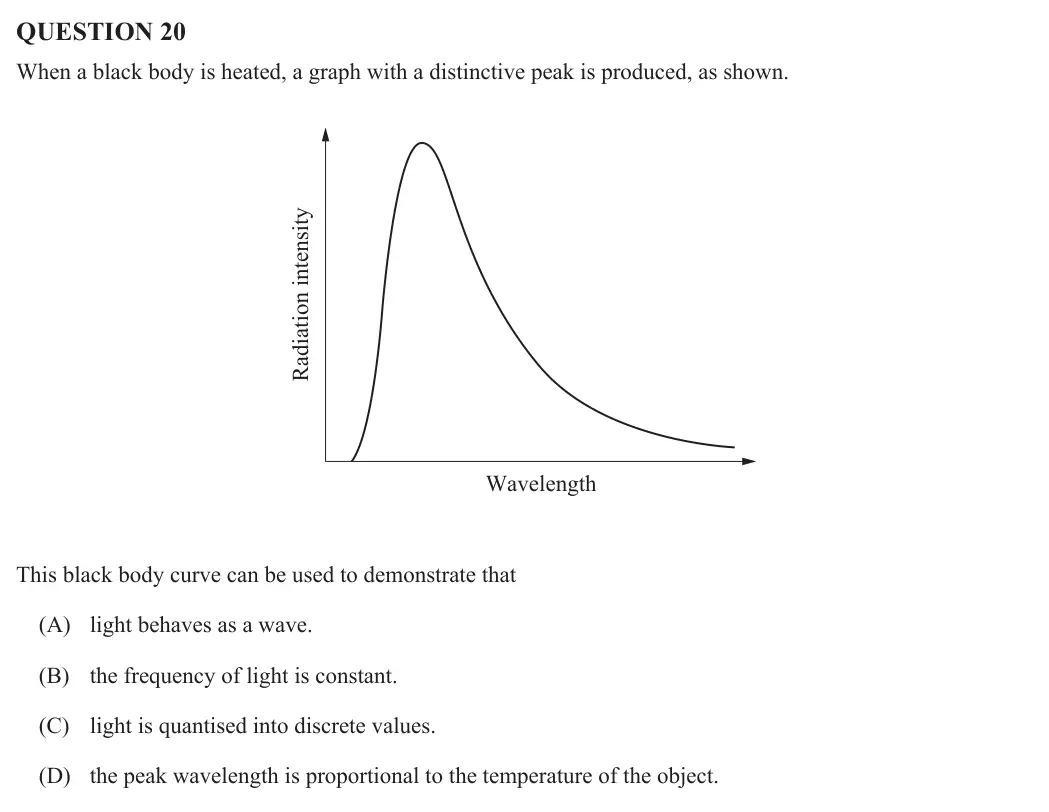

QUESTION 20 When a black body is heated, a graph with a distinctive peak is produced, as shown. Radiation intensity Wavelength This black body curve can be used to demonstrate that (A) light behaves as a wave. (B) the frequency of light is constant. (C) light is quantised into discrete values. (D) the peak wavelength is proportional to the temperature of the object.

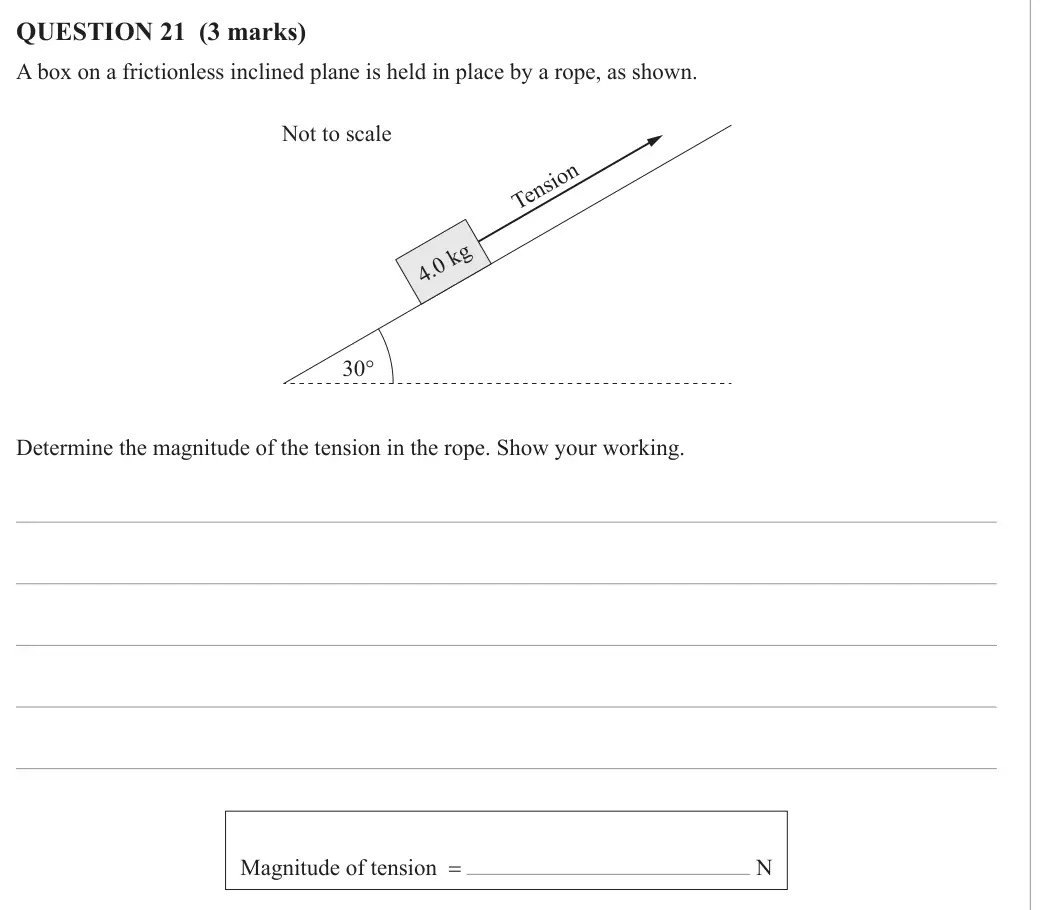

QUESTION 21 (3 marks) A box on a frictionless inclined plane is held in place by a rope, as shown. 4.0 kg 30° Tension Not to scale Determine the magnitude of the tension in the rope. Show your working. Magnitude of tension = N

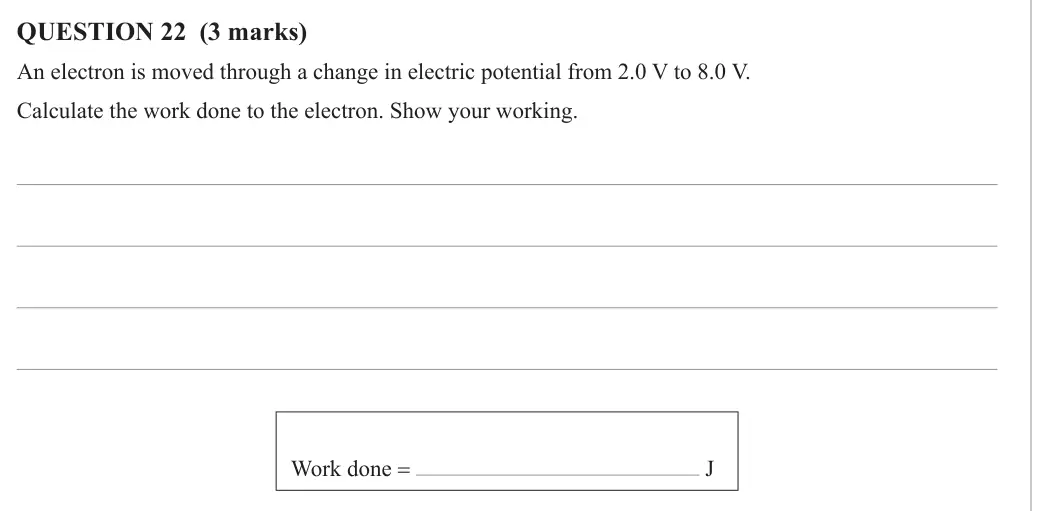

QUESTION 22 (3 marks) An electron is moved through a change in electric potential from 2.0 V to 8.0 V. Calculate the work done to the electron. Show your working. Work done = J

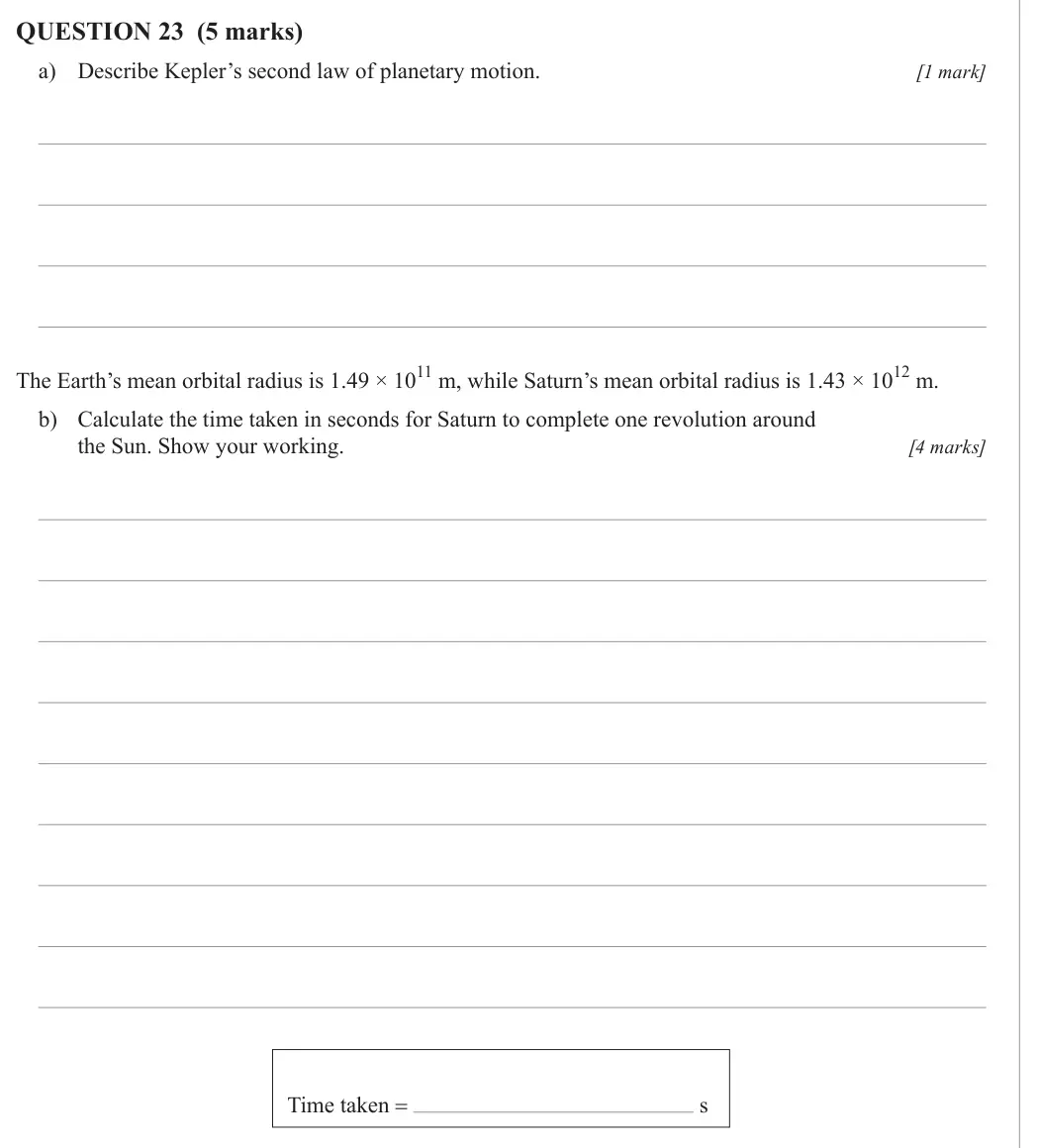

QUESTION 23 (5 marks) a) Describe Kepler’s second law of planetary motion. [1 mark] The Earth’s mean orbital radius is 1.49 × 1011 m, while Saturn’s mean orbital radius is 1.43 × 1012 m. b) Calculate the time taken in seconds for Saturn to complete one revolution around the Sun. Show your working. [4 marks] Time taken = s

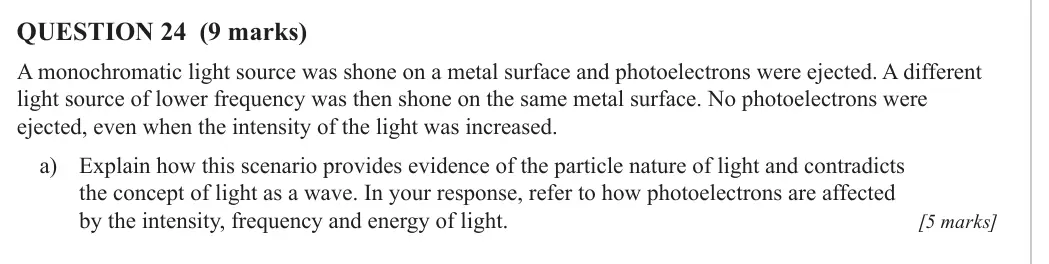

QUESTION 24 (9 marks) A monochromatic light source was shone on a metal surface and photoelectrons were ejected. A different light source of lower frequency was then shone on the same metal surface. No photoelectrons were ejected, even when the intensity of the light was increased. a) Explain how this scenario provides evidence of the particle nature of light and contradicts the concept of light as a wave. In your response, refer to how photoelectrons are affected by the intensity, frequency and energy of light.  [5 marks] A photoelectric experiment used light of frequency 8.50 × 1014 Hz, and the maximum kinetic energy of the photoelectrons ejected from the metal was measured to be 4.25 × 10−19 J. b) Calculate the work function in electron volts of the metal used in this experiment. Show your working. [4 marks] Work function = eV

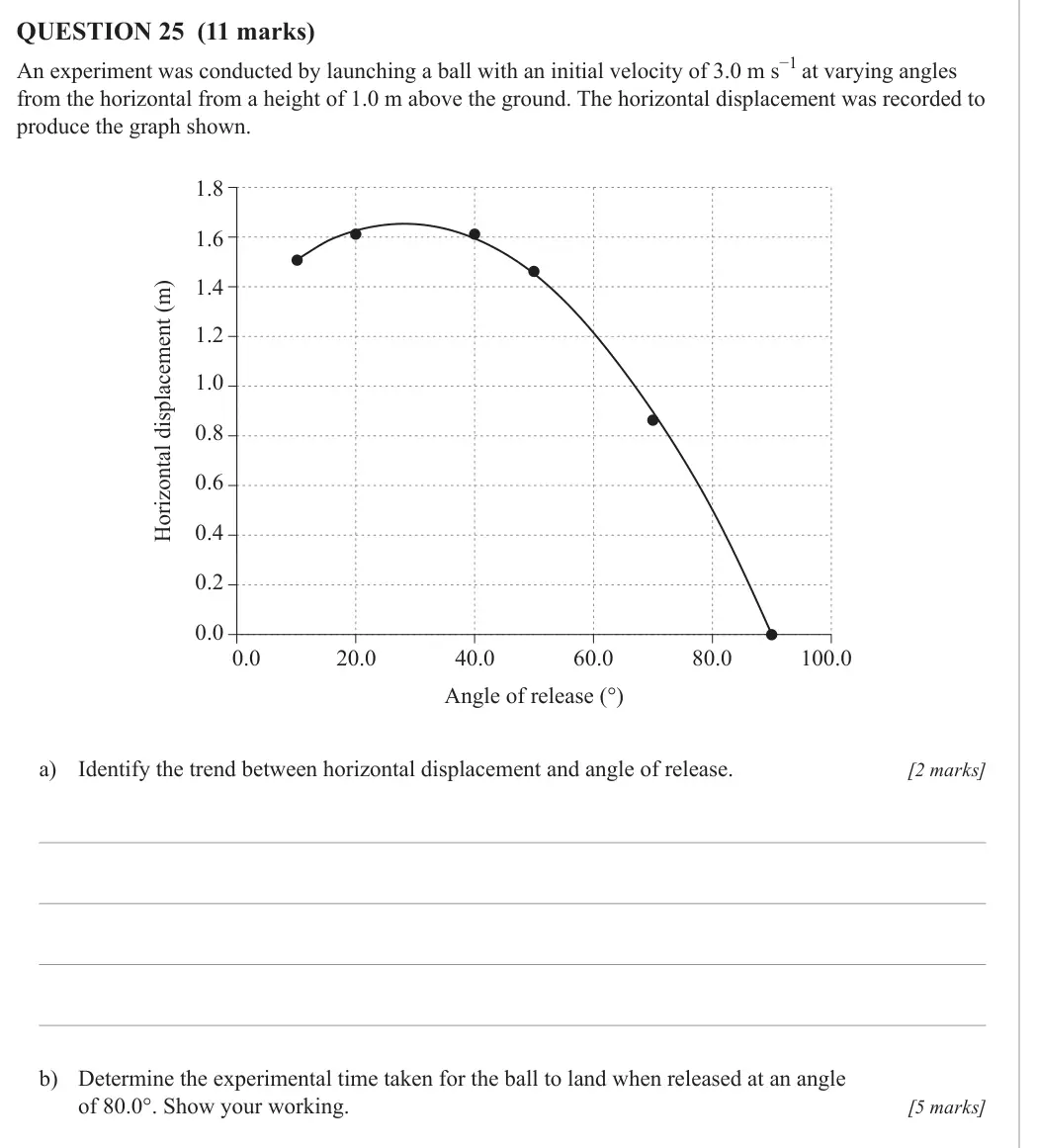

QUESTION 25 (11 marks) An experiment was conducted by launching a ball with an initial velocity of 3.0 m s−1 at varying angles from the horizontal from a height of 1.0 m above the ground. The horizontal displacement was recorded to produce the graph shown. 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 0.0 20.0 40.0 60.0 80.0 100.0 Angle of release (°) Horizontal displacement (m) a) Identify the trend between horizontal displacement and angle of release. [2 marks] b) Determine the experimental time taken for the ball to land when released at an angle of 80.0°. Show your working. [5 marks] Time taken = s c) Determine the maximum height from the ground that the ball could reach using this set‑up. Show your working. [4 marks] Maximum height = m
